CHUCK ACCESSORIES
July 03, 2018
CUSTOM FLANGES
PML-PAL offers fitting solutions or custom flanges for the pneumatic precision chucks or any other chucks.
We have the capability to custom make flanges or any fitting devices that will precisely fit the chuck on your machine. We will work with you to come up with the best mounting solution. Below are several examples that were made for either our customers or for in house usage. For addtitional information please contact us.

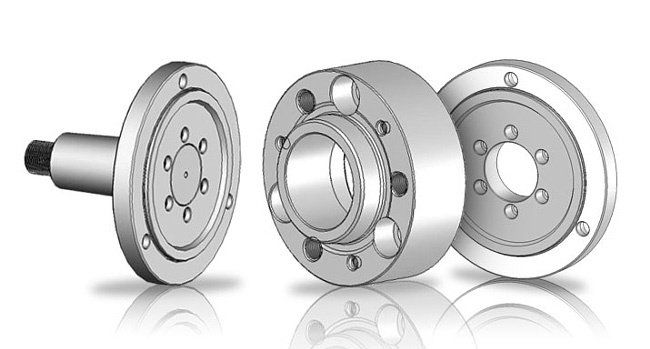

MT5 adaptor for 157mm BCG model air chuck with internal back thread
MT5 adaptor for 150mm BC rotating air chuck with external back thread
A2-6 Adaptor for 200mm BC rotating precision air chuck

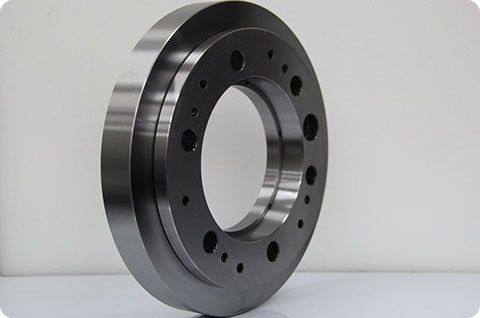

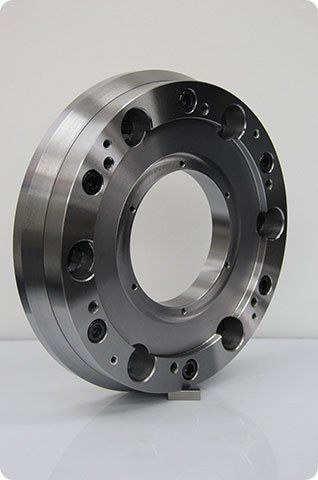

Model A2-8 custom made flange. It fits two PML-PAL chuck sizes, 157MM and 265MM.
It saves time on chuck replacement and set up.
Those are sealed chuck
models 157-3-2.5 BCG and 265-3-2.5 BCG.

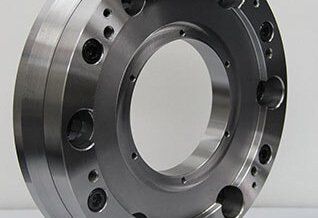

Model A2-11 custom made flange. It fits two PML-PAL chuck sizes, 157MM and 265MM.
It saves time on chuck replacement and set up. Those are sealed chuck models
157-3-2.5 BCG and 265-3-2.5 BCG. The flange fits on a machine with a larger spindle nose.
