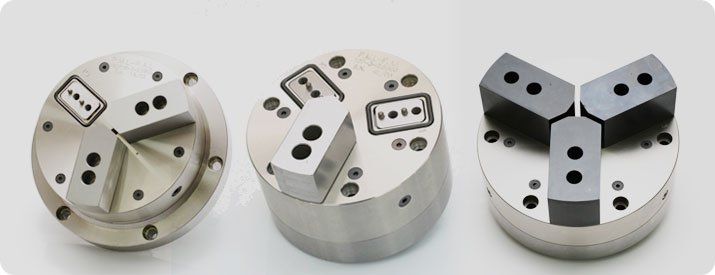

GRINDING AIR CHUCK, SEALED
High precision grinding air rotating chucks are sealed. The pneumatic chucks are designed to operate on CNC grinding machines and conventional as well. The air chuck design prevents penetration of any swarf or metal dust into the chuck, minimizing maintenance and stoppage time. Other applications are machining abrasive materials such as, powder metal or carbide. This chuck may be used on a turning machine as well.
Accuracy is 0.002mm or 0.0001".
Chuck size range from 87mm to 265mm or 3.5" up to 10".
The pneumatic grinding chuck comes in 2 and 3 jaws.
Please read related articles at the following link:

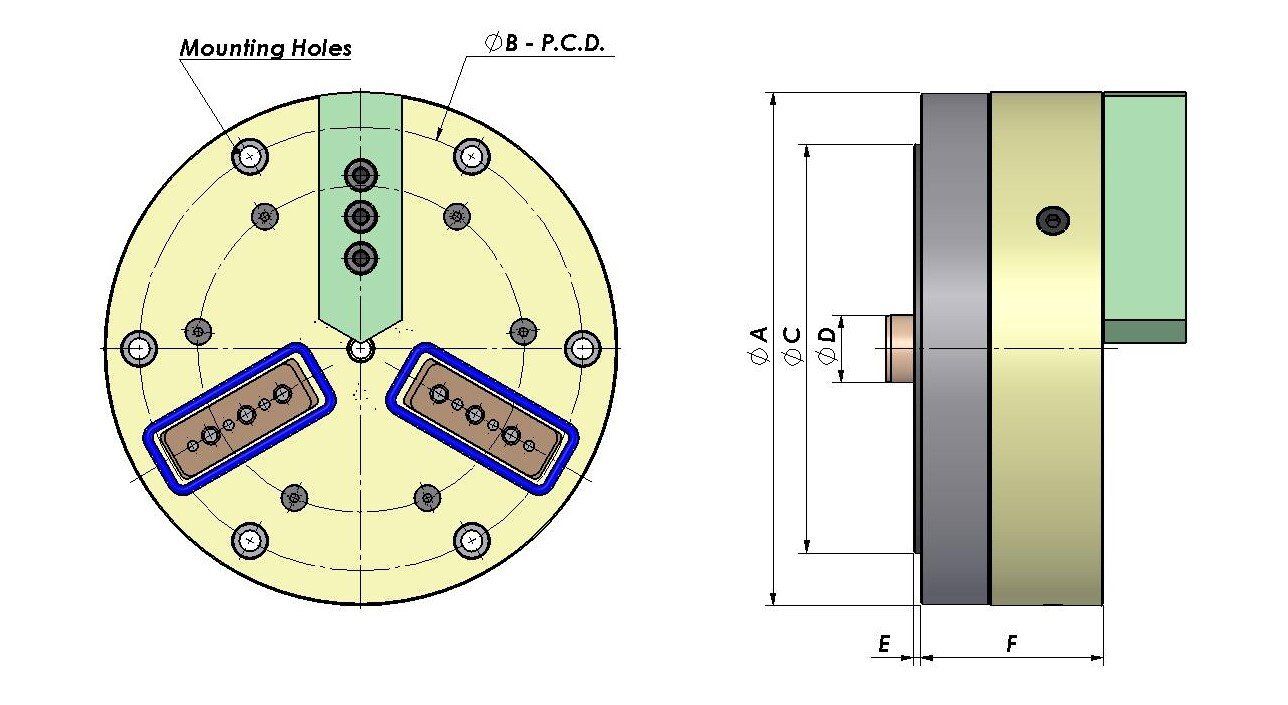

Mechanical Parameters in mm Chuck Body
| Chuck Model | A | B P.C.D. | C | D | E | F |
|---|---|---|---|---|---|---|
| 87-2-2.5BCG | 87 | 70 | 60 | 20.6 | 2 | 53.1 |
| 87-3-2.5BCG | 87 | 70 | 60 | 20.6 | 2 | 53.1 |
| 107-2-2.5BCG | 107 | 88.9 | 82.55 | 20.6 | 2 | 56.3 |
| 107-3-2.5BCG | 107 | 88.9 | 82.55 | 20.6 | 2 | 56.3 |
| 135-2-2.5BCG | 135 | 101.6 | 114.3 | 20.6 | 2 | 60 |
| 135-3-2.5BCG | 135 | 101.6 | 114.3 | 20.6 | 2 | 60 |
| 157-2-2.5BCG | 157 | 135.75 | 125 | 20.6 | 2.2 | 55.9 |
| 157-3-2.5BCG | 157 | 135.75 | 125 | 20.6 | 2.2 | 55.9 |
| 214-3-2.5BCG | 214 | 183 | 167.6 | 20.7 | 7 | 80.8 |
| 265-3-2.5BCG | 265 | 233.7 | 215.8 | 20.7 | 7 | 74 |
Technical Parameters for Jaws
| Chuck Model | Number of Jaws | Stroke on Diameter mm | Max R.P.M. | Total Gripping Force (kgf) in 6 bars |
|---|---|---|---|---|
| 87-2-2.5BCG | 2 | 2.5 | 3000 | 260 |
| 87-3-2.5BCG | 3 | 2.5 | 3000 | 260 |
| 107-2-2.5BCG | 2 | 2.5 | 3500 | 490 |
| 107-3-2.5BCG | 3 | 2.5 | 4000 | 490 |
| 135-2-2.5BCG | 2 | 2.5 | 4000 | 950 |
| 135-3-2.5BCG | 3 | 2.5 | 4000 | 950 |
| 157-2-2.5BCG | 2 | 2.5 | 4000 | 1055 |
| 157-3-2.5BCG | 3 | 2.5 | 3500 | 1055 |
| 214-3-2.5BCG | 3 | 2.5 | 2000 | 2800 |
| 265-3-2.5BCG | 3 | 2.5 | 2000 | 3150 |

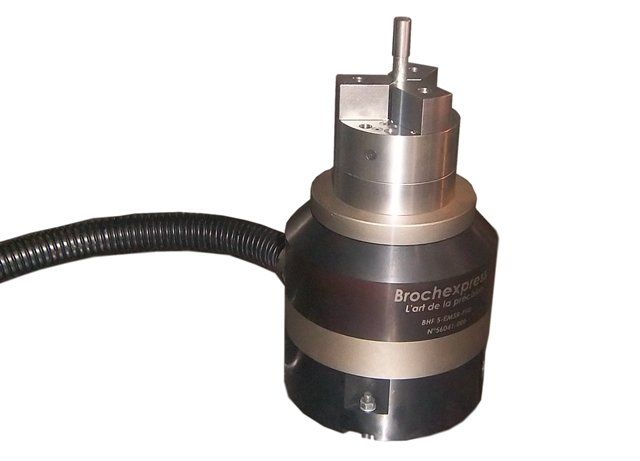

107-3-10 STG model - 107mm or 4" high precision air chuck w/ several features:
it is sealed with 10mm stroke, 17mm through hole, and a quick change capability in the back.

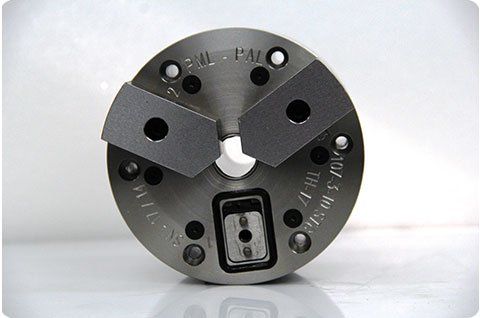

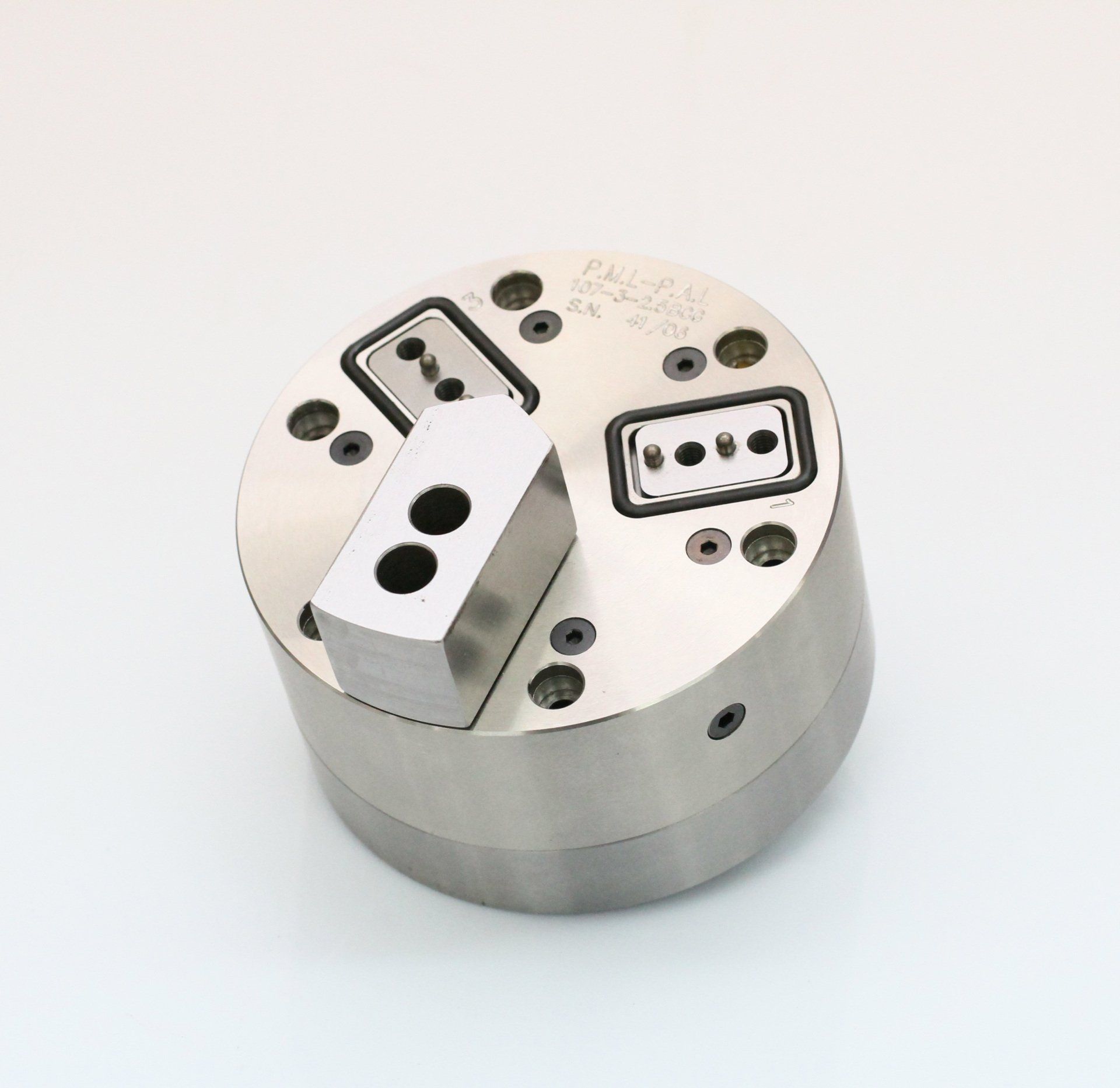

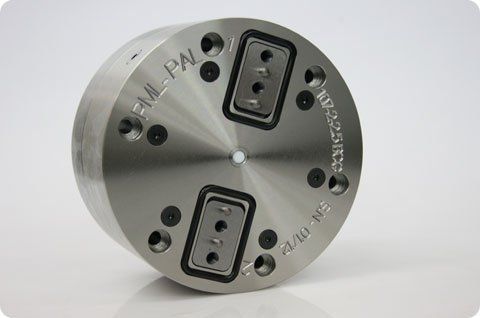

107-2-2.5 BCG model -107mm or 4" sealed 2 jaw high precision air chuck

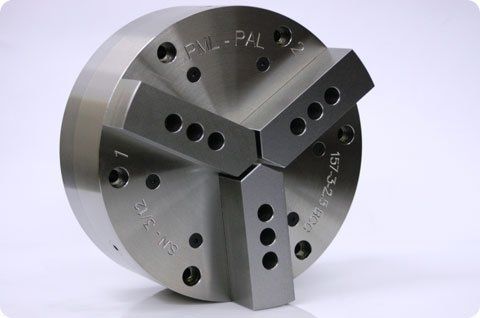

157-3-2.5 BCG model - 157mm or 6" sealed high precision rotating air chuck
87-3-1.2 BCG-Q model - Sealed chuck with unique top jaws for CUSTOM diamond
turning application with 1.2mm stroke
87-3-2.5 BCG model - Sealed chuck, a photo from a customer and video below.
